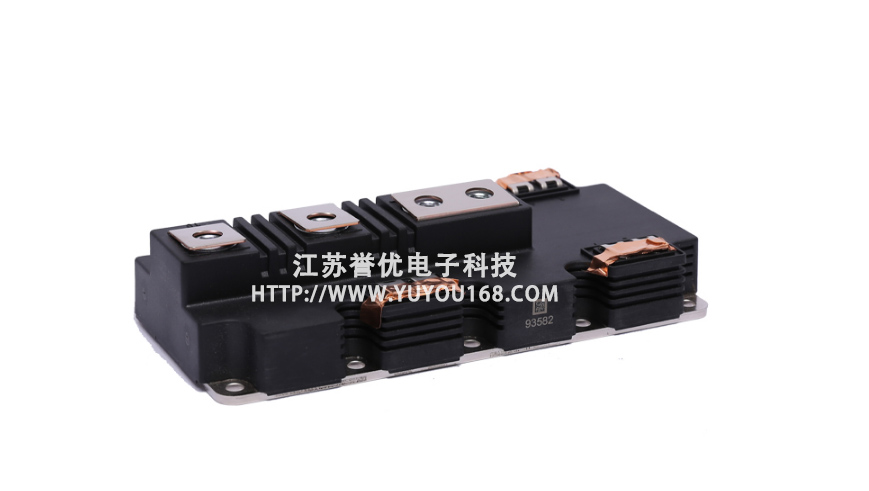

Parametrics	FF650R17IE4
Configuration	Dual
Dimensions (length)	172.0 mm
Dimensions (width)	89.0 mm
Housing	PrimePACK™ 2
IC(nom) / IF(nom)	650.0 A
IC max	650.0 A
Qualification	Industrial
Technology	IGBT4 - E4
VCE(sat) (Tvj=25°C typ)	2.0 V
VCES / VRRM	1700.0 V
VF (Tvj=25°C typ)	1.85 V
Voltage Class	1700.0 V

图片	型号	电压	技术	电流	VCE(sat) Tvj=25°C typ	VF Tvj=25°C typ	封装结构	长宽	宽度
	DF900R12IP4D	1200 V	IGBT4 - P4	900 A	1.7 V	1.65 V	PrimePACK™ 2	172 mm	89 mm
	FD900R12IP4D	1200 V	IGBT4 - P4	900 A	1.7 V	1.65 V	PrimePACK™ 2	172 mm	89 mm
	DF600R12IP4D	1200 V	IGBT4 - P4	600 A	1.7 V	1.65 V	PrimePACK™ 2	172 mm	89 mm
	FF900R12IP4P	1200 V	IGBT4 - P4	900 A	1.7 V	1.9 V	PrimePACK™ 2	172 mm	89 mm
	FF900R12IP4	1200 V	IGBT4 - P4	900 A	1.7 V	1.9 V	PrimePACK™ 2	172 mm	89 mm
	FF600R12IP4	1200 V	IGBT4 - P4	600 A	1.7 V	1.8 V	PrimePACK™ 2	172 mm	89 mm
	FF1200R12IE5P	1200 V	IGBT5 - E5	1200 A	1.9 V	1.7 V	PrimePACK™ 2	172 mm	89 mm
	FF900R12IP4D	1200 V	IGBT4 - P4	900 A	1.7 V	1.65 V	PrimePACK™ 2	172 mm	89 mm
	FF900R12IE4V	1200 V	IGBT4 - E4	900 A	1.75 V	1.9 V	PrimePACK™ 2	172 mm	89 mm
	FF900R12IE4P	1200 V	IGBT4 - E4	900 A	1.75 V	1.9 V	PrimePACK™ 2	172 mm	89 mm
	FF450R12IE4	1200 V	IGBT4 - E4	450 A	1.75 V	1.9 V	PrimePACK™ 2	172 mm	89 mm
	FF600R12IE4	1200 V	IGBT4 - E4	600 A	1.75 V	1.8 V	PrimePACK™ 2	172 mm	89 mm
	FF1200R12IE5	1200 V	IGBT5 - E5	1200 A	1.7 V	1.9 V	PrimePACK™ 2	172 mm	89 mm
	FF900R12IE4VP	1200 V	IGBT4 - E4	900 A	1.75 V	1.9 V	PrimePACK™ 2	172 mm	89 mm
	FF900R12IE4	1200 V	IGBT4 - E4	900 A	1.75 V	1.9 V	PrimePACK™ 2	172 mm	89 mm
	FD650R17IE4	1700 V	IGBT4 - E4	650 A	2 V	1.85 V	PrimePACK™ 2	172 mm	89 mm
	FF1200R17IP5	1700 V	IGBT5 - P5	1200 A	1.75 V	1.8 V	PrimePACK™ 2	172 mm	89 mm
	FF650R17IE4DP_B2	1700 V	IGBT4 - E4	650 A	2 V	1.7 V	PrimePACK™ 2	172 mm	89 mm
	FF650R17IE4D_B2	1700 V	IGBT4 - E4	650 A	2 V	1.7 V	PrimePACK™ 2	172 mm	89 mm
	FF650R17IE4P	1700 V	IGBT4 - E4	650 A	2 V	1.85 V	PrimePACK™ 2	172 mm	89 mm
	FF450R17IE4	1700 V	IGBT4 - E4	450 A	2 V	1.85 V	PrimePACK™ 2	172 mm	89 mm
	FF650R17IE4	1700 V	IGBT4 - E4	650 A	2 V	1.85 V	PrimePACK™ 2	172 mm	89 mm
	DF900R12IP4DV	1200 V	IGBT4 - P4	900 A	1.7 V	1.65 V	PrimePACK™ 2	172 mm	89 mm
	FD900R12IP4DV	1200 V	IGBT4 - P4	900 A	1.7 V	1.65 V	PrimePACK™ 2	172 mm	89 mm
	FF900R12IP4DV	1200 V	IGBT4 - P4	900 A	1.7 V	1.65 V	PrimePACK™ 2	172 mm	89 mm
	FF900R12IP4V	1200 V	IGBT4 - P4	900 A	1.7 V	1.9 V	PrimePACK™ 2	172 mm	89 mm
	FF600R12IE4V	1200 V	IGBT4 - E4	600 A	1.75 V	1.8 V	PrimePACK™ 2	172 mm	89 mm
	FF600R12IP4V	1200 V	IGBT4 - P4	600 A	1.7 V	1.8 V	PrimePACK™ 2	172 mm	89 mm
	DF650R17IE4	1700 V	IGBT4 - E4	650 A	2 V	1.85 V	PrimePACK™ 2	172 mm	89 mm
	FF650R17IE4V	1700 V	IGBT4 - E4	650 A	2 V	1.85 V	PrimePACK™ 2	172 mm	89 mm
