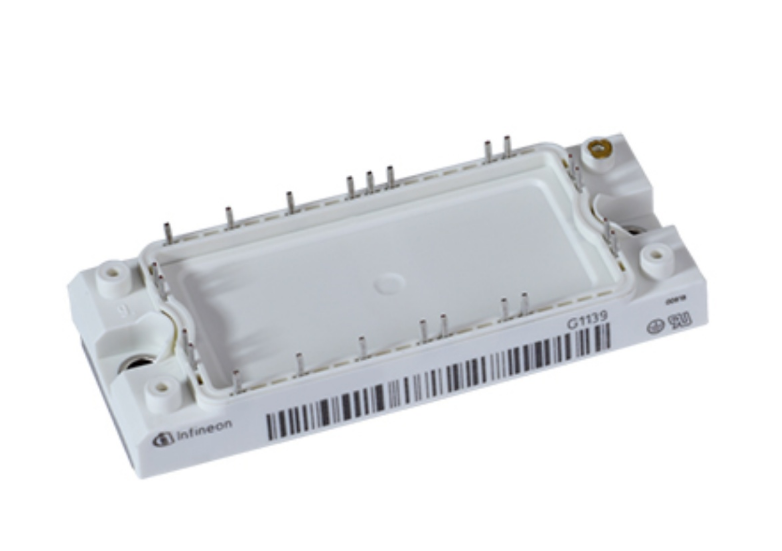

FS50R17KE3B17

指标参数

ParametricsFS50R17KE3_B17
ConfigurationSixpack
Dimensions (length)107.5 mm
Dimensions (width)45.0 mm
HousingEconoPACK™ 2
IC(nom) / IF(nom)50.0 A
IC   max50.0 A
QualificationIndustrial
TechnologyIGBT3 - E3
VCE(sat) (Tvj=25°C typ)2.0 V
VCES / VRRM1700.0 V
VF (Tvj=25°C typ)1.8 V
Voltage Class1700.0 V
