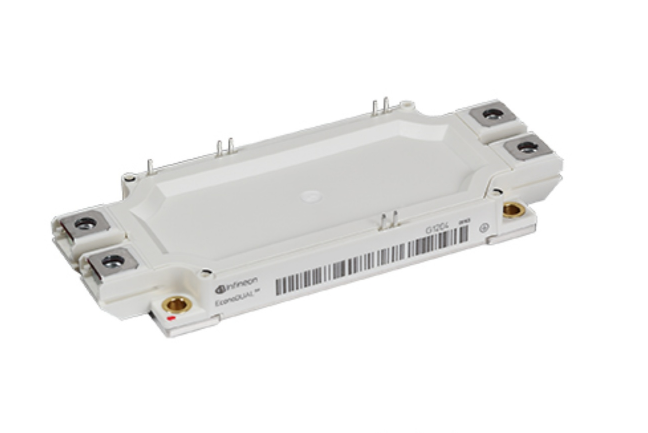

FD600R06ME3S2

指标参数

ParametricsFD600R06ME3_S2
matchConfigurationmatchChopper
Dimensions (length)152.0 mm
Dimensions (width)62.0 mm
HousingEconoDUAL™ 3
IC(nom) / IF(nom)600.0 A
IC   max600.0 A
QualificationIndustrial
TechnologyIGBT3 - E3
VCE(sat) (Tvj=25°C typ)1.3 V
VCES / VRRM600.0 Vmatch
VF (Tvj=25°C typ)1.15 Vmatchmatch
Voltage Class600.0 Vmatch
