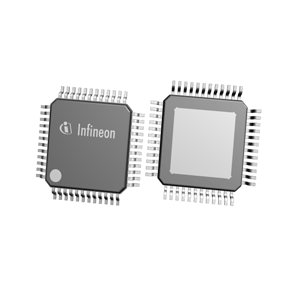

英飞凌电池管理TLE9012DQU
| Parametrics | TLE9012DQU |
|---|---|
| Balancing Current max | 200 mA |
| Cell Voltage max | 7 V |
| Classification | ISO 26262-compliant |
| ESD Protection | 4 kV |
| Isolated Communication Interface | iso UART |
| Non-isolated Communication Interface | UART |
| Standby Current | 2.5 µA |
| Tj max | 150 °C |
| Temperature Measurement Channels | 5 |
| Voltage Class | 75 V |
| Voltage Measurement Channels | 12 |
