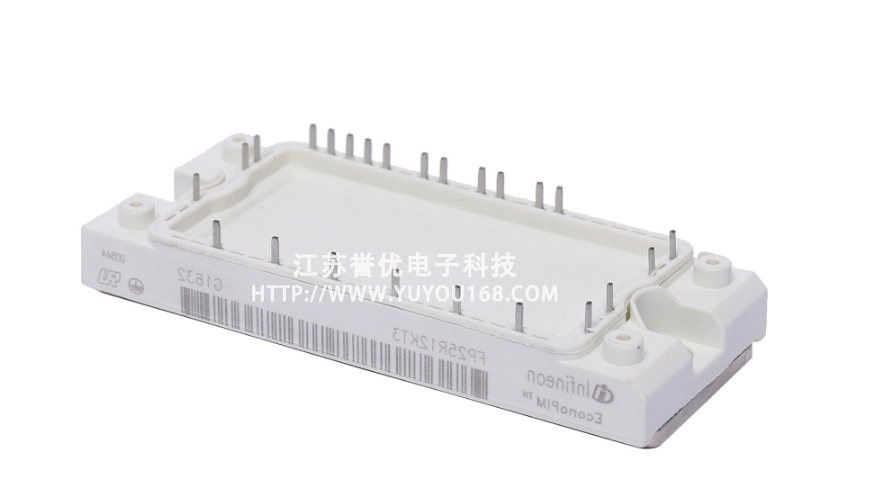

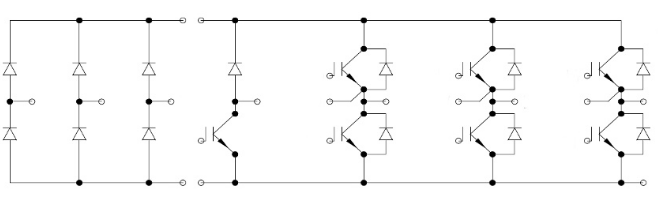

EconoPIM™ 2 1200 V、25 A 三相 PIM IGBT 模块，采用快速 TRENCHSTOP™ IGBT3 芯片和 NTC温度传感器。集成了整流器和制动斩波器的 PIM（功率集成模块）可节省系统成本。OTM模块可使用 Econo 2 和 Econo 3 封装，同时具有可焊接引脚。

• 电机控制和驱动

• 工业加热和焊接

• 家用空调





指标参数

图片	型号	电压	技术	电流	VCE(sat) Tvj=25°C   typ	VF Tvj=25°C      typ	封装结构	长宽	宽度
	FS75R12KT3	1200 V	IGBT3 - T3	75 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS50R12KT3	1200 V	IGBT3 - T3	50 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS35R12KT3	1200 V	IGBT3 - T3	35 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS25R12KT3	1200 V	IGBT3 - T3	25 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS75R12KT4_B11	1200 V	IGBT4 - T4	75 A	1.85 V	1.7 V	EconoPACK™ 2	107.5 mm	45 mm
	FS50R12KT4_B15	1200 V	IGBT4 - T4	50 A	1.85 V	1.7 V	EconoPACK™ 2	107.5 mm	45 mm
	FS100R12N2T4	1200 V	IGBT4 - T4	100 A	1.75 V	1.7 V	EconoPACK™ 2	107.5 mm	45 mm
	FS75R12KT4	1200 V	IGBT4 - T4	75 A	1.85 V	1.7 V	EconoPACK™ 2	107.5 mm	45 mm
	FS100R12N2T4P	1200 V	IGBT4 - T4	100 A	1.75 V	1.7 V	EconoPACK™ 2	107.5 mm	45 mm
	FS50R12KT4P_B11	1200 V	IGBT4 - T4	50 A	1.85 V	1.7 V	EconoPACK™ 2	107.5 mm	45 mm
	FS50R12KT4_B11	1200 V	IGBT4 - T4	50 A	1.85 V	1.7 V	EconoPACK™ 2	107.5 mm	45 mm
	FS75R12KT4_B15	1200 V	IGBT4 - T4	75 A	1.85 V	1.7 V	EconoPACK™ 2	107.5 mm	45 mm
	FS75R06KE3	600 V	IGBT3 - E3	75 A	1.45 V	1.55 V	EconoPACK™ 2	107.5 mm	45 mm
	FS50R06KE3	600 V	IGBT3 - E3	50 A	1.45 V	1.55 V	EconoPACK™ 2	107.5 mm	45 mm
	FS75R12KE3_B9	1200 V	IGBT3 - E3	75 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS35R12KE3G	1200 V	IGBT3 - E3	35 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS25R12KE3G	1200 V	IGBT3 - E3	25 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS75R12KE3	1200 V	IGBT3 - E3	75 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS50R12KE3	1200 V	IGBT3 - E3	50 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS50R17KE3_B17	1700 V	IGBT3 - E3	50 A	2 V	1.8 V	EconoPACK™ 2	107.5 mm	45 mm
	FS100R07N2E4	650 V	IGBT4 - E4	100 A	1.55 V	1.55 V	EconoPACK™ 2	107.5 mm	45 mm
	FS100R07N2E4_B11	650 V	IGBT4 - E4	100 A	1.55 V	1.55 V	EconoPACK™ 2	107.5 mm	45 mm
	FS75R07N2E4_B11	650 V	IGBT4 - E4	75 A	1.55 V	1.55 V	EconoPACK™ 2	107.5 mm	45 mm
	FS75R07N2E4	650 V	IGBT4 - E4	75 A	1.55 V	1.55 V	EconoPACK™ 2	107.5 mm	45 mm
	IFF300B12N2E4P_B11	1200 V	IGBT4 - E4	300 A	1.75 V	1.7 V	EconoPACK™ 2	122 mm	62 mm
	IFF300B17N2E4P_B11	1700 V	IGBT4 - E4	300 A	1.95 V	1.8 V	EconoPACK™ 2	107.5 mm	45 m
