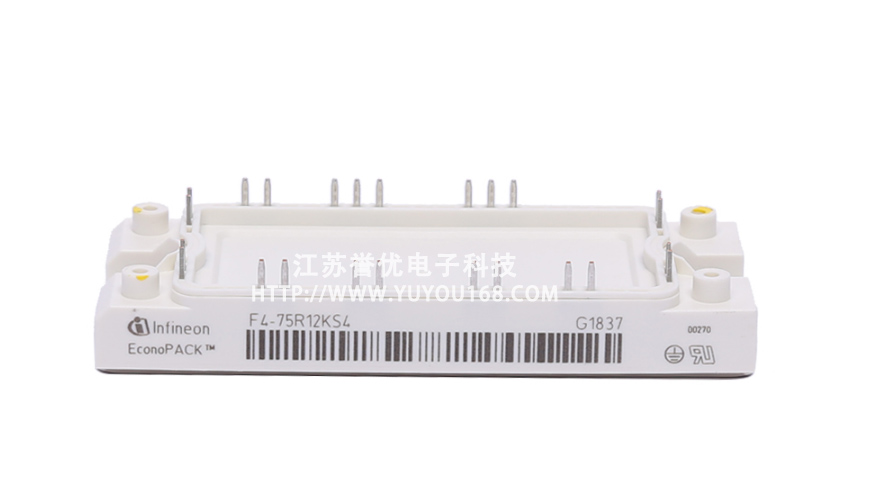

Parametrics	F4-75R12KS4
Configuration	Fourpack
Dimensions (width)	45.0 mm
Dimensions (length)	107.5 mm
Housing	EconoPACK™ 2
IC(nom) / IF(nom)	75.0 A
IC max	75.0 A
Qualification	Industrial
Technology	IGBT2 Fast
VCE(sat) (Tvj=25°C typ)	3.2 V
VF (Tvj=25°C typ)	2.0 V
Voltage Class	1200.0 V

图片	型号	电压	技术	电流	VCE(sat) Tvj=25°C typ	VF Tvj=25°C typ	封装结构	长宽	宽度
	FS75R12KT3	1200 V	IGBT3 - T3	75 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS50R12KT3	1200 V	IGBT3 - T3	50 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS35R12KT3	1200 V	IGBT3 - T3	35 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS25R12KT3	1200 V	IGBT3 - T3	25 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS75R12KT4_B11	1200 V	IGBT4 - T4	75 A	1.85 V	1.7 V	EconoPACK™ 2	107.5 mm	45 mm
	FS50R12KT4_B15	1200 V	IGBT4 - T4	50 A	1.85 V	1.7 V	EconoPACK™ 2	107.5 mm	45 mm
	FS100R12N2T4	1200 V	IGBT4 - T4	100 A	1.75 V	1.7 V	EconoPACK™ 2	107.5 mm	45 mm
	FS75R12KT4	1200 V	IGBT4 - T4	75 A	1.85 V	1.7 V	EconoPACK™ 2	107.5 mm	45 mm
	FS100R12N2T4P	1200 V	IGBT4 - T4	100 A	1.75 V	1.7 V	EconoPACK™ 2	107.5 mm	45 mm
	FS50R12KT4P_B11	1200 V	IGBT4 - T4	50 A	1.85 V	1.7 V	EconoPACK™ 2	107.5 mm	45 mm
	FS50R12KT4_B11	1200 V	IGBT4 - T4	50 A	1.85 V	1.7 V	EconoPACK™ 2	107.5 mm	45 mm
	FS75R12KT4_B15	1200 V	IGBT4 - T4	75 A	1.85 V	1.7 V	EconoPACK™ 2	107.5 mm	45 mm

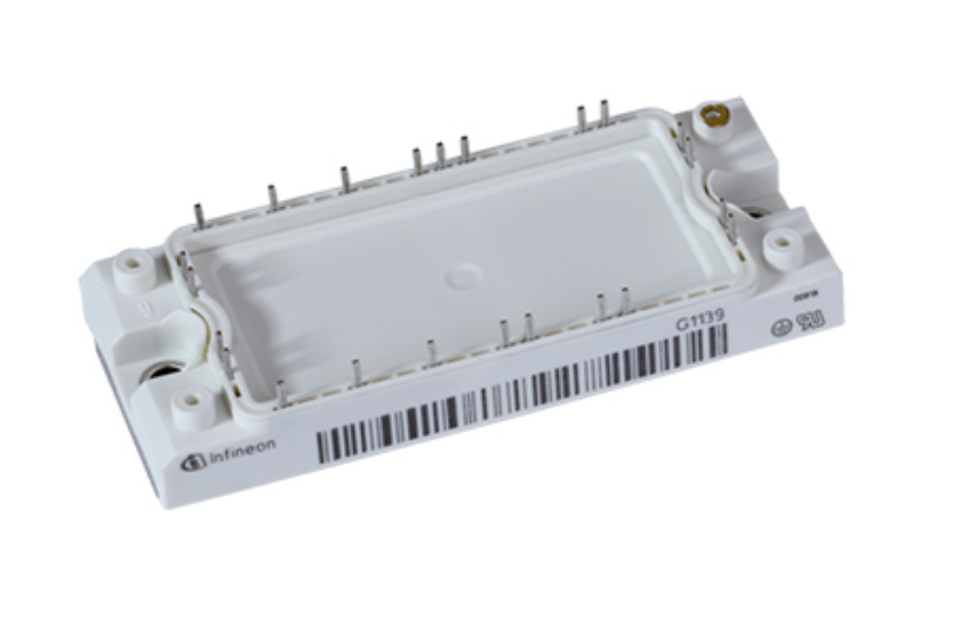

	FS75R06KE3	600 V	IGBT3 - E3	75 A	1.45 V	1.55 V	EconoPACK™ 2	107.5 mm	45 mm
	FS50R06KE3	600 V	IGBT3 - E3	50 A	1.45 V	1.55 V	EconoPACK™ 2	107.5 mm	45 mm
	FS75R12KE3_B9	1200 V	IGBT3 - E3	75 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS35R12KE3G	1200 V	IGBT3 - E3	35 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS25R12KE3G	1200 V	IGBT3 - E3	25 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS75R12KE3	1200 V	IGBT3 - E3	75 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS50R12KE3	1200 V	IGBT3 - E3	50 A	1.7 V	1.65 V	EconoPACK™ 2	107.5 mm	45 mm
	FS50R17KE3_B17	1700 V	IGBT3 - E3	50 A	2 V	1.8 V	EconoPACK™ 2	107.5 mm	45 mm
	FS100R07N2E4	650 V	IGBT4 - E4	100 A	1.55 V	1.55 V	EconoPACK™ 2	107.5 mm	45 mm
	FS100R07N2E4_B11	650 V	IGBT4 - E4	100 A	1.55 V	1.55 V	EconoPACK™ 2	107.5 mm	45 mm
	FS75R07N2E4_B11	650 V	IGBT4 - E4	75 A	1.55 V	1.55 V	EconoPACK™ 2	107.5 mm	45 mm
	FS75R07N2E4	650 V	IGBT4 - E4	75 A	1.55 V	1.55 V	EconoPACK™ 2	107.5 mm	45 mm
	IFF300B12N2E4P_B11	1200 V	IGBT4 - E4	300 A	1.75 V	1.7 V	EconoPACK™ 2	122 mm	62 mm
	IFF300B17N2E4P_B11	1700 V	IGBT4 - E4	300 A	1.95 V	1.8 V	EconoPACK™ 2	107.5 mm	45 mm
